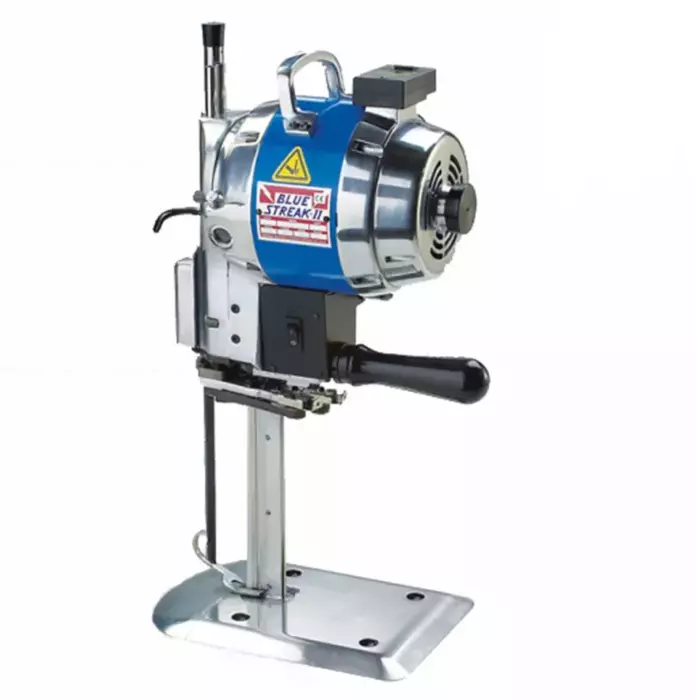

Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle
Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle
Blue Streak II® Model 629 Dual Speed Cutting Machine 110 Volt - 1 Phase - 60 Cycle
Style: 110V1P-DS1-1/2S
With versatility unmatched by any other straight knife, the Blue Streak II® is the obvious choice when one cloth cutting machine is required to perform many tasks.
FEATURES:
- Power to weight ratio offers easy handling and maneuvering, even for the tightest radius
- Low-profile baseplate and narrow silhouette standard make cutting of intricate patterns and tight turns simple
- Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005″(0.0013cm)
- Simple handling of the machine due to its low center of gravity
- Low maintenance requiring only daily lubricating with the easy-to-use One Shot single-reservoir oiling system
SPECIFICATIONS:
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed |
|---|---|
| Horsepower | .65hp, 1ph .93hp, 3ph |
| Weight | 34 lbs. (15.4kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip |
| Belts | Standard: Medium Grit Optional: Fine, Coarse, Rough |
| Options | Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in. |
| Stroke Sizes | 1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm) |
| Blade Sizes | 5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm) |
| Cutting Capacity | 3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm) |
